Rail Pad

A rail pad, also called rail rubber plate, is designed between the rail tie plate and foot of the rail, made by an elastic polyurethane mat, which is interposed between steel rails and tie sleepers to protect the sleeper top from wearing and impacting. Its defined stiffness is used to increase the elasticity of the superstructure of the ballast and reduce shock and vibration in the rail system. With such upgraded load distribution, it will lead to greater passenger comfort and less wearing onto the superstructure. The strengthened elasticity effects positively onto the wear of the superstructure items and rolling stock. It’s always fastened within a fastening system by screw spikes or rail bolts into the sleeper ties. The reason why rail pad made up of rubber or plastic is to dampen the shocks or vibration of a passing train. Usually the starting stiffness is designed a little low in order that the relative deformation under the spring clip toe loads is substantial, which can guarantees the rail pad maintaining in close contact with the rail in spite of any vertical movements of the latter.

The rail pad laid under the rail is used to guarantee:

• The load distribution covering a larger surface area
• Reducing load concentration and usage fatigue stress
• Even contact area between the rail and supporting components
• Reducing noise and structural vibrations
• Sealing function between the top support and rail bottom
• Reducing rail wearing and relevant supporting components

Get Price Now

Production Process of Rail Pads

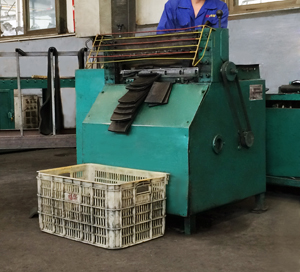

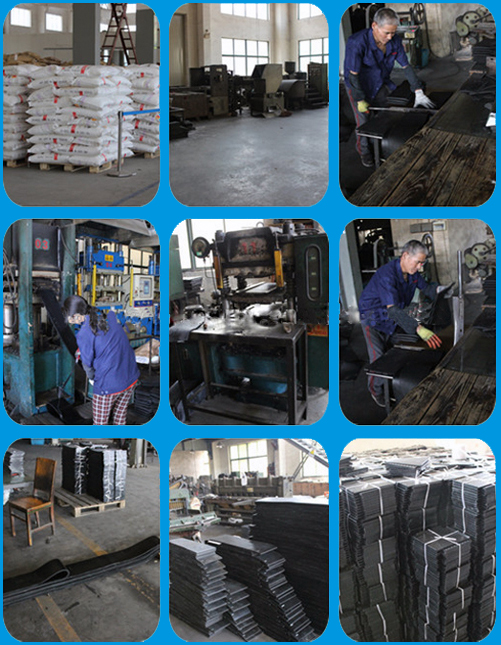

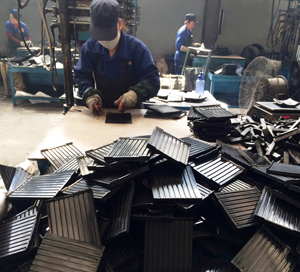

ASAN is equipped with rail pad production lines for 130sets of machines, for the whole process of injection, refining rubber, sulfuration, moulding and inspection, etc. We own the most engineers for rail pad development, design, production and inspection, with annual production capacity reaching up to 2000, 000 pieces. What’s more, rail pads for high speed rail lines are our featured products, including both the elastic rubber plates and height adjustment pads.

Elastic rubber plates for High-speed Railways

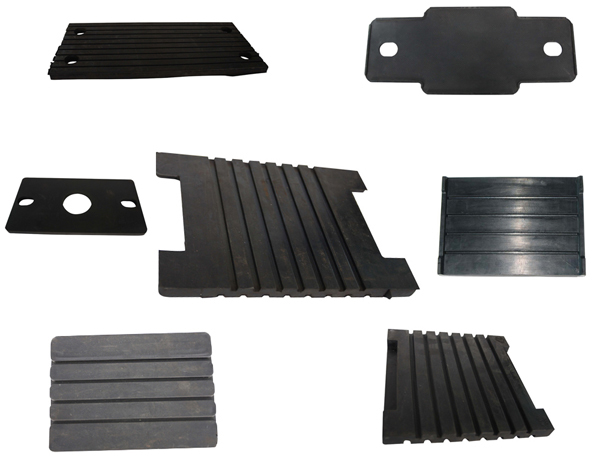

Height adjustment pads for High-speed Railways

Rail pads for Normal Railways

A range of high-performance elastic rail pads have been developed for stiffness requirements and various application areas-from trams through standard gauge railways to heavy haul lines, this especially suitable for E-type rail fastening systems and SKL-type rail fastening system with material of HDPE/EVA/Rubber, the following parameters for reference. Get Price Now

HDPE

EVA: Polyethylene 80%, Vinyl Acetate 20%

Rubber

Get Price Now

Anti-vibration Under Slab Mat

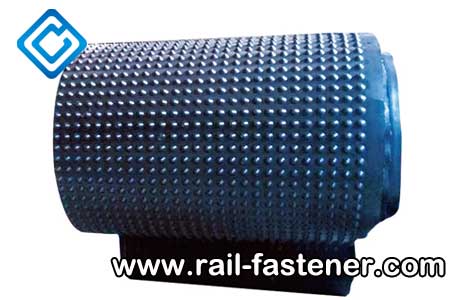

The Anti-vibration Under Slab Mat is a fabric-reinforced rubber vibration isolation product designed for installation beneath railway slab tracks. It is placed between the concrete slab and the supporting structure, with the studded surface facing downward during installation, providing effective vibration isolation and load distribution.

The under slab mat reduces the transmission of vibration and structural noise generated by train operation, improving passenger comfort and protecting surrounding structures. Its reinforced rubber structure provides stable elastic performance, durability, and long-term resistance to repeated dynamic loads. The product is suitable for various railway applications, including urban metro systems, mainline railways, and other slab track structures requiring improved vibration control performance.

Key Features

• Effective vibration reduction
  Reduces transmitted vibration by approximately 12–15 dB.

• Reliable elastic performance
  Fabric-reinforced rubber construction provides stable stiffness and long-term durability under repeated loading.

• Suitable for various track structures
  Available for metro and mainline railway applications with different stiffness requirements.

• Easy installation
  The studded surface design helps maintain stable positioning during installation.

• Proven application performance
  Successfully installed on more than 30 km of railway lines in China.

ASAN can provide customized under slab mat solutions according to track structure design, stiffness requirements, and project conditions.
